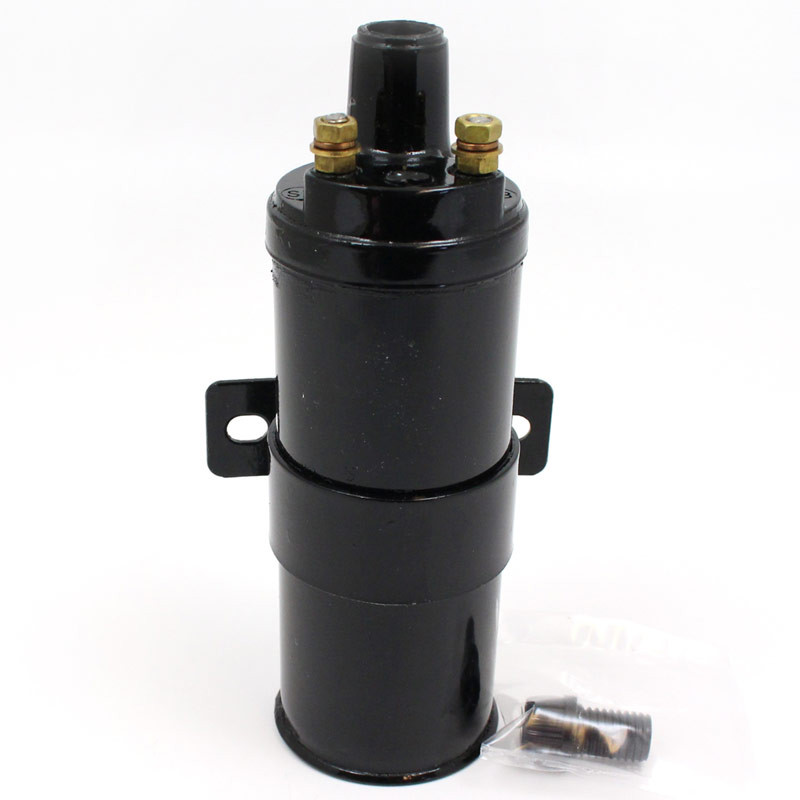

Reproduction of the original Lucas coil fitted between the late 1930's and the mid 1950's. With screw in/acorn nut lead connection. Terminal CB is positive and SW is negative. Primary coil resistance is 3.6 ohms and secondary coil resistance 15.5 k/ohms. It is imperative that the +ve and -ve connections are made correctly. This coil is labelled for use on +ve earth vehicles, but if using on a -ve earth vehicle, connect the 12v supply to the CB terminal and the distributor points to the SW terminal. Size 180mm high, 55 mm diameter. Mounting holes 63 mm apart.

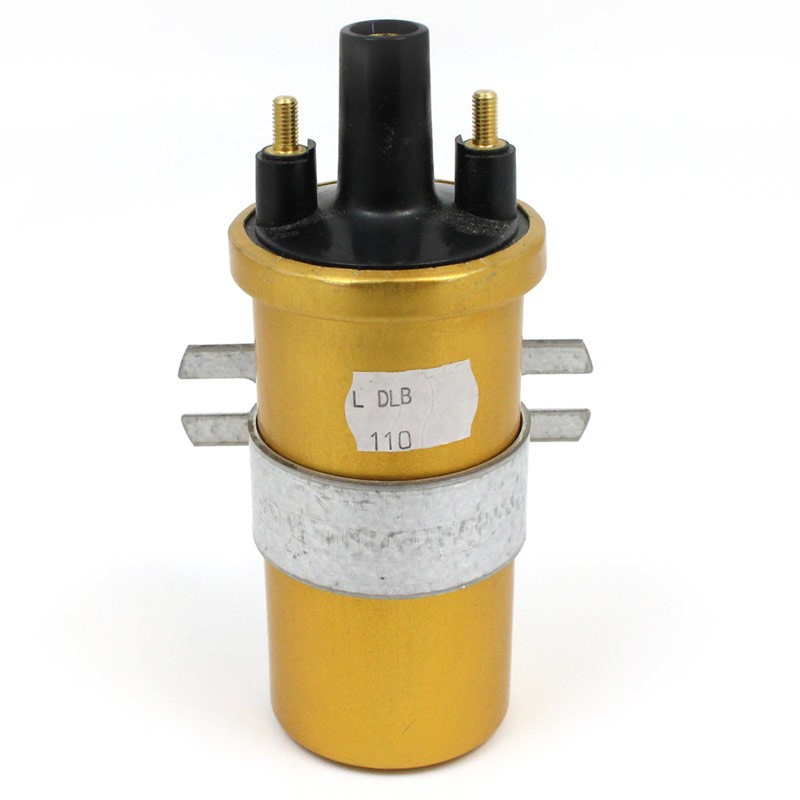

NON BALLASTED SPORTS COIL - 12V. Gives a stronger spark than the standard COIL4 or COIL5. Lucas part number DLB105. 55MM Dia. Push in HT lead. Pimary coil resistance 2.8 ohms and secondary coil resistance 10.45 k/ohms.
NON BALLASTED SPORTS COIL 6V. Gives a stronger spark than the standard COIL1 or COIL3. Suitable alternative to many Lucas part numbers including 406697 and HS6. 55MM Dia. Push in HT lead. Pimary coil resistance 2.8 ohms and secondary coil resistance 10.45 k/ohms.

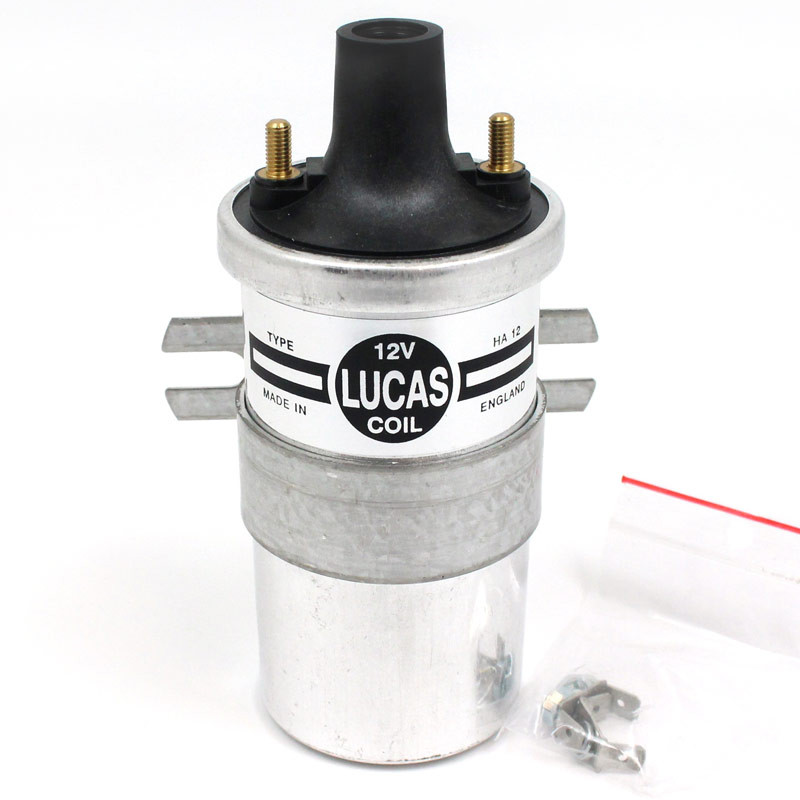

12-volt Lucas non-ballasted coil with screw-in type HT lead with acorn connector. Supplied with mounting bracket. 5mm ring terminal connections. Aluminium finish. Height 165mm, body height 120mm, diameter 55mm. Primary coil resistance is 2.9 ohms and secondary coil resistance is 10.9 k/ohms, suitable equivalent for many Lucas part numbers including DLB100.
12 volt Lucas non ballasted coil with push in type HT lead connector. Supplied with mounting bracket. 5mm ring terminal connections. Aluminium finish. Height 165mm, body height 120mm, diameter 55mm. Primary coil resistance 2.9 ohms, secondary coil resistance 10.9 k/ohms. A Lucas sports/high output version of this coil is also available - please see part number COIL8. Suitable equivalent for many Lucas part numbers including DLB101.

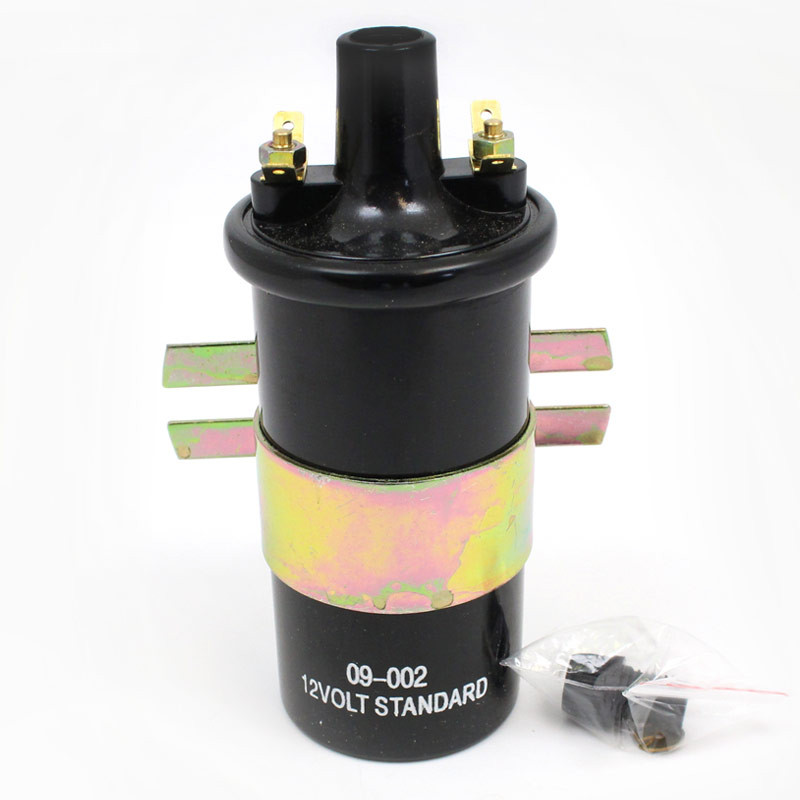

12 volt ignition coil with push in top cable terminal. Twin Lucar connections. Supplied complete with mounting bracket. Lucas standard and sports/high output versions of this coil are also available - please see respective part numbers COIL5 and COIL8. Suitable equivalent for many Lucas part numbers including DLB101.

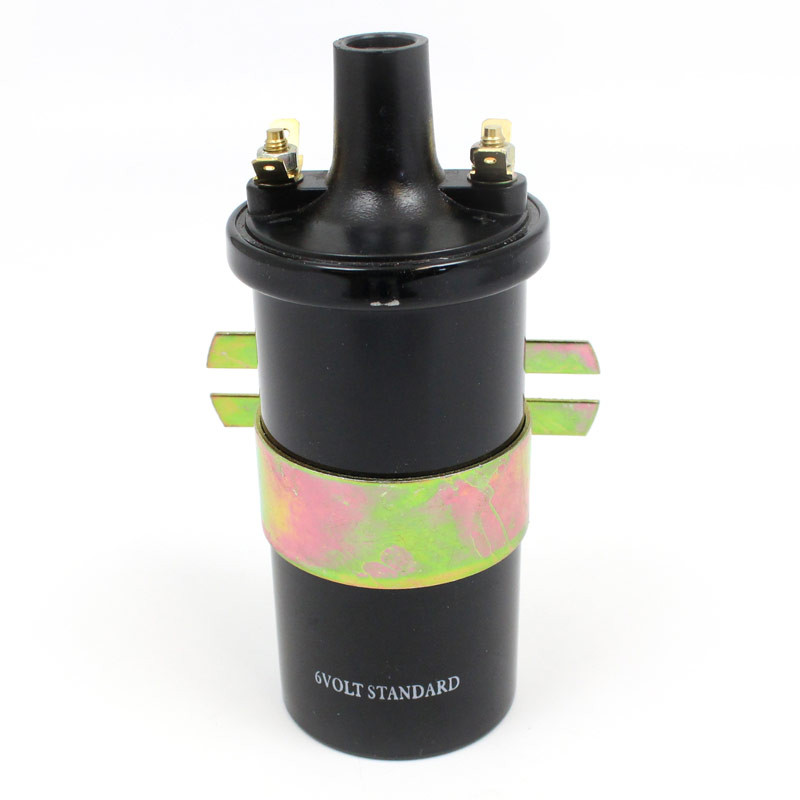

6 volt ignition coil with push in top cable terminal. Twin Lucar connections. Supplied complete with mounting bracket. For acorn nut/screw in lead connection coil see part number COIL1.
12 volt ignition coil with acorn nut/screw in top cable terminal. Twin Lucar connections. Supplied complete with mounting bracket. For push in lead connection coils see part numbers COIL4, COIL5 and COIL8. Suitable equivalent for many Lucas part numbers including DLB100 and 401650.
6 volt ignition coil with acorn nut/screw in top cable terminal. Twin Lucar connections. Supplied complete with mounting bracket. For push in lead connection coil see part number COIL3. Suitable equivalent for many Lucas part numbers including DLB112 and 401648.
