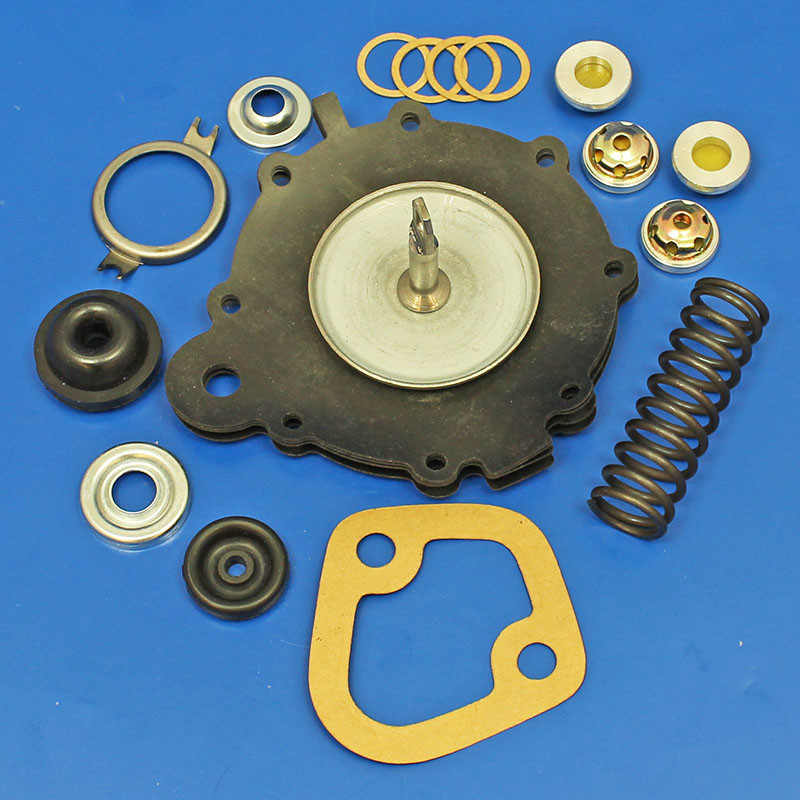

AC Rebuild / Repair Kit for VACUUM SIDE of WE, WG and W type fuel pumps. Applications include Bedford TA series '53 to '56, Bedford S Type trucks '55 to '56 and Ford 10/12 and 15 cwt vans '58 to 61, some Consul, Zephyr and Zodiac. Full kit now available. For the Fuel side kit please see FPBD54.

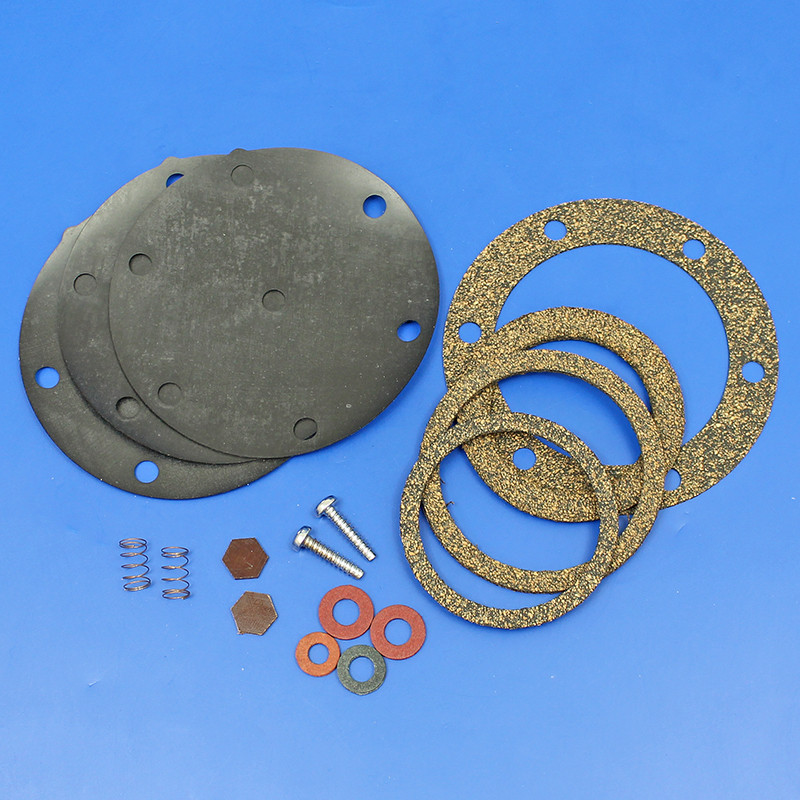

AC Fuel pump rebuild / repair kit for type A, B, G, L, N and P pumps. Early fuel pump (1930 to '35) repair kit for Austin, Bedford, Hillman, Humber, Rover, Jowett, Singer and Vauxhall. Kit contains diaphragm assembly, two hexagonal valves (3/8" AF), two brass wire springs, three bowl gaskets, diaphragm gasket, two drain plug gaskets, two valve plug gaskets, two self tapping screws.

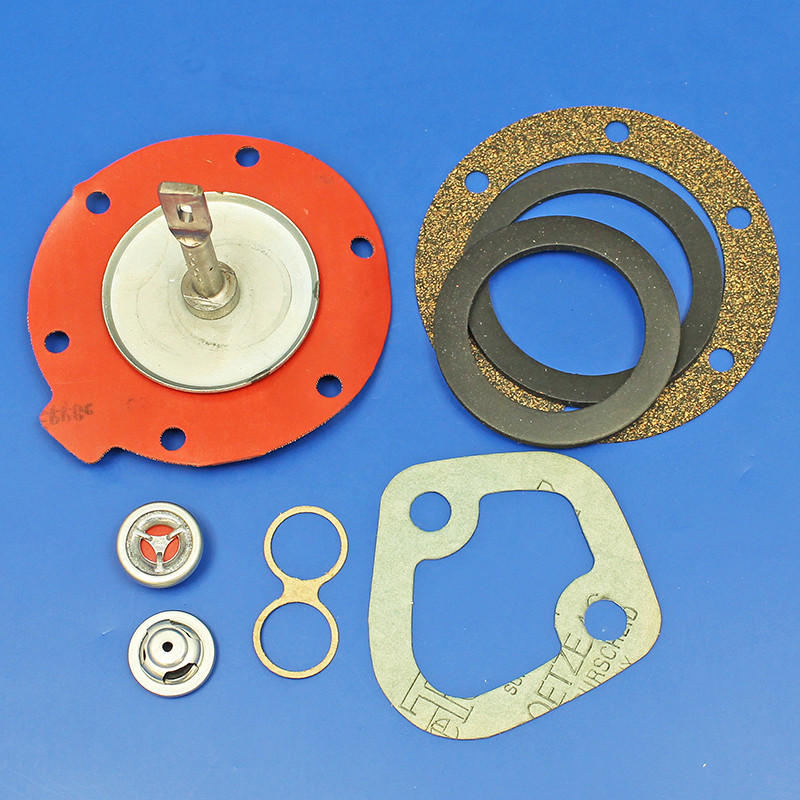

AC Fuel Pump rebuild repair kit for W, WE, WG and WH type pumps - FUEL SIDE. Kit contains diaphragm assembly, two valve assemblies, two bowl gaskets, engine pad gasket, valve plate and diaphragm gaskets. For Fuel side spring and seal parts - see part numbers FPRRET3 Spring retainer, FPRS10 Spring, FPRRET2 Seal retainer and FPRSEAL2 Seal. For Vacuum side components see FPBD8 and individual fuel pump repair components.

AC Fuel Pump rebuild/repair kit for UE and FG type pumps fitted to Dodge England petrol models 1952/63, Ford New Anglia, Classic, Capri 1961/64, Ford Cortina, Corsair, 5,7 cwt. Vans 1961/64, Morgan Series III 1960/63. Kit contains diaphragm assembly, two valve assemblies, two bowl gaskets, two engine pad gaskets, valve plug and drain plug gaskets.

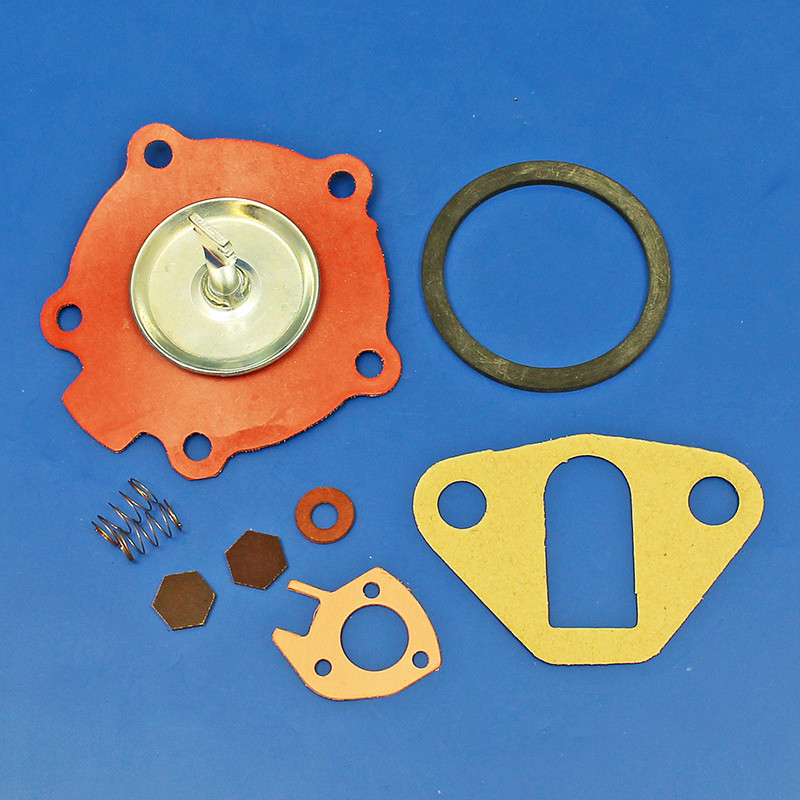

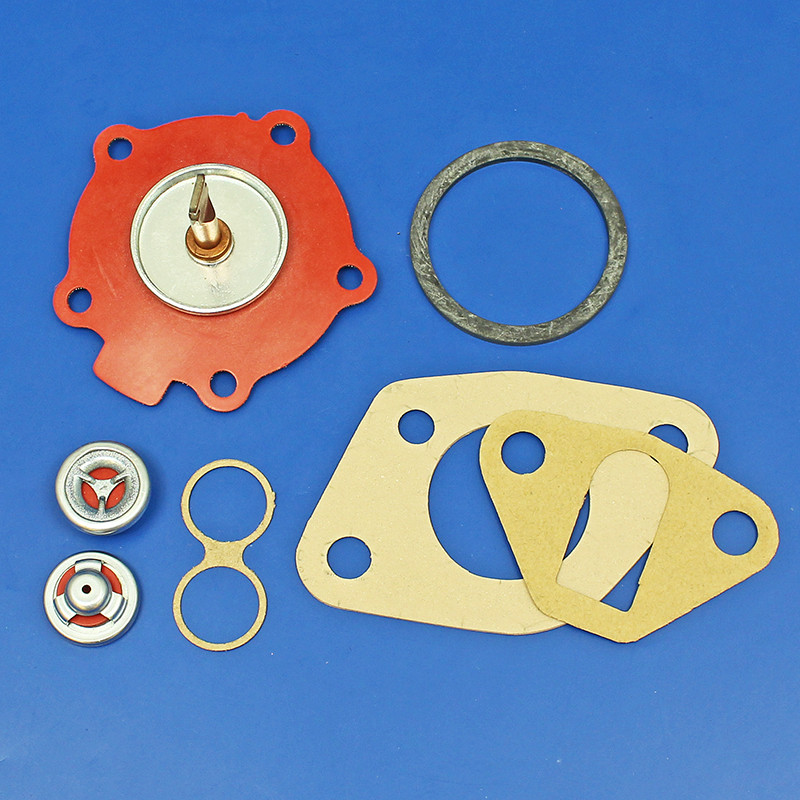

AC Fuel Pump repair / rebuid kit for all YD and YJ type pumps fitted to Austin, Ford cars, Hillman Imp, Sunbeam Imp Sport and Stiletto, Thames Light Vans to '60, Standard 8 and 10 HP, Triumph Herald, Spitfire and TR's, Singer Chamois, Vauxhall Wyvern to '53 and Viva. Kit contains diaphragm assembly, two valve assemblies, two bowl gaskets, one engine pad gasket and a valve plate gasket.

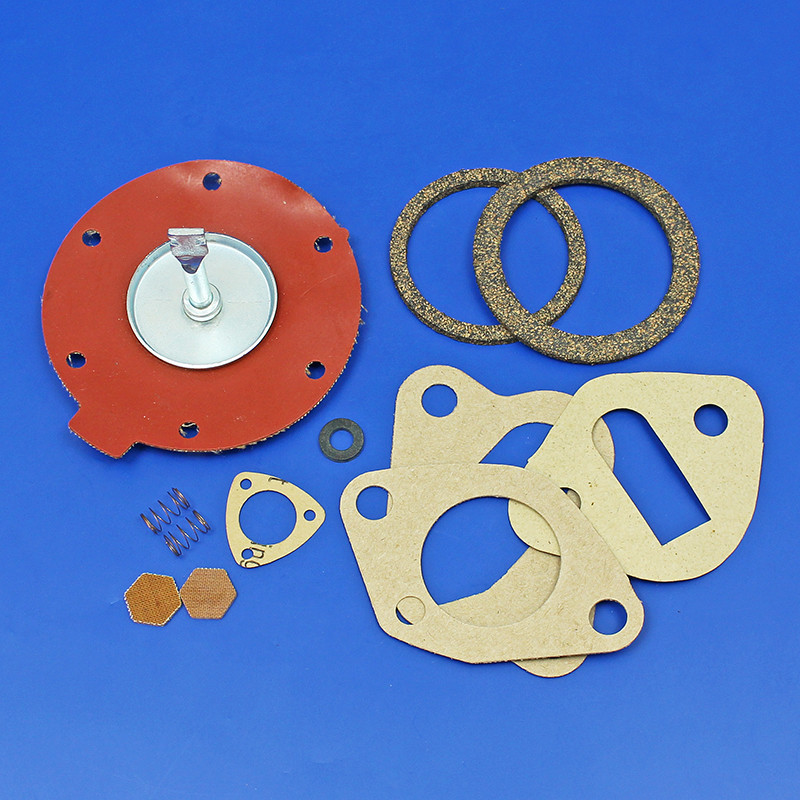

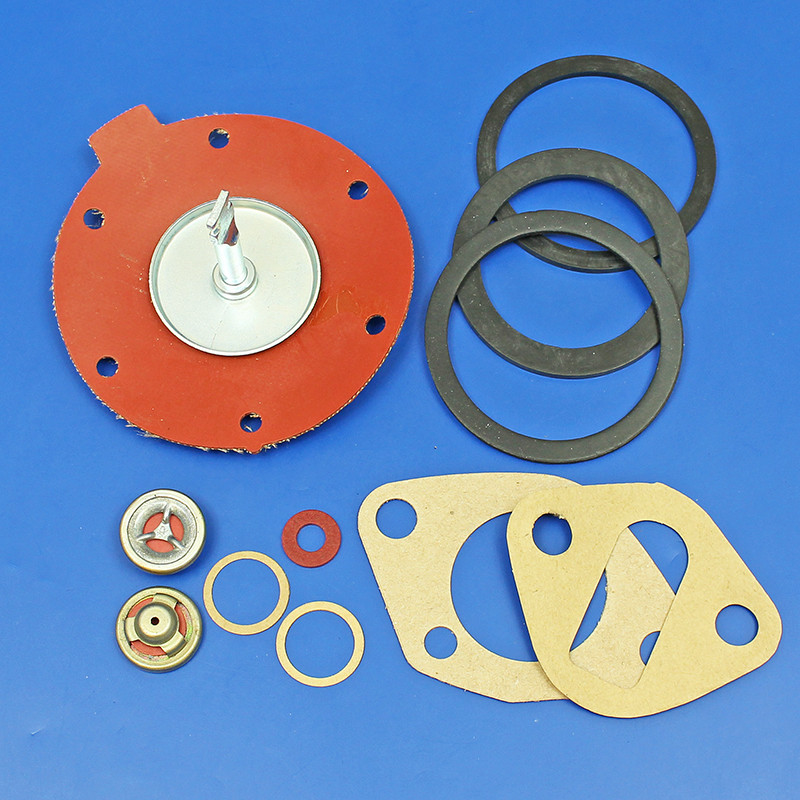

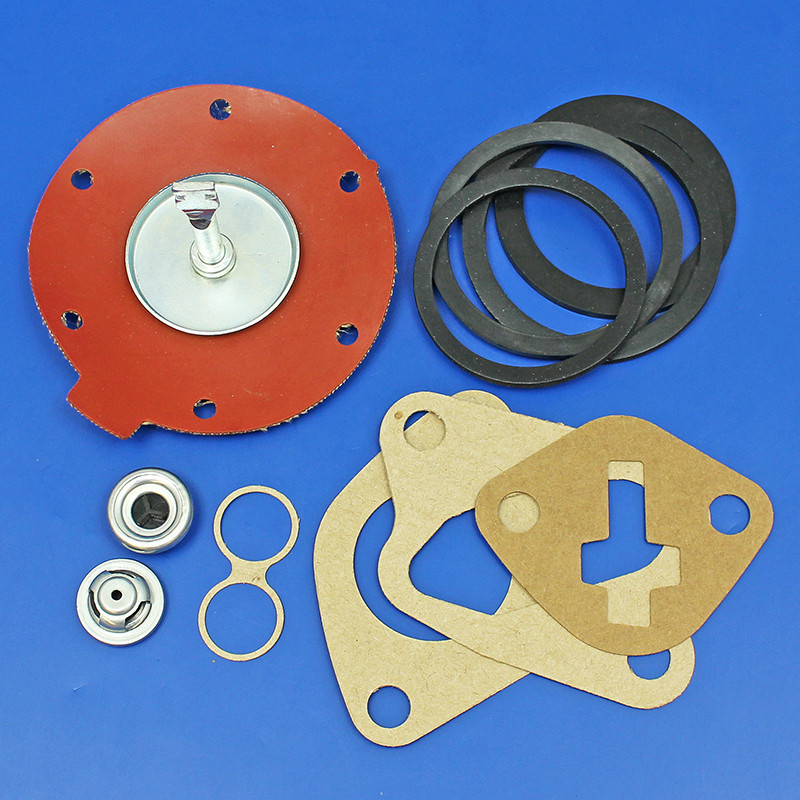

AC Fuel Pump repair / rebuild kit for all U, UE, UF, UG, FE, FG, FH, UH type pumps fitted to Austin, Bedford, Commer, Ford, Hillman, Singer, Standard, Sunbeam, Triumph Vitesse, 2000 and Vauxhall (1949 to 68), Landrover Series 2 & 3, Kit contains diaphragm assembly, two valve assemblies, four bowl gaskets, three engine pad gaskets, valve plate gaskets.

AC Fuel Pump repair / rebuild kit for all T, TF and TG type pumps fitted to Austin, Bedford, Commer, Ford, Hillman, Rover and Vauxhall. Kit contains (3 .1/4" outer diameter) - (1. 3/4" length centre shaft) - (Holes diagonally across 2.795" centre to centre) - (Neighbouring Holes 1.420" apart)   diaphragm assembly, two hexagonal valves (15/32" AF), two brass wire springs, two bowl gaskets, three engine pad gaskets, valve plate and drain plug gaskets.

AC Fuel Pump repair / rebuild kit for all Y type pumps fitted to Austin, Bedford, Ford, Hillman, Standard and Vauxhall (1938 to 56). Kit contains diaphragm assembly, two hexagonal valves (3/8" AF), two brass wire springs, one bowl gaskets, one engine pad gasket, valve plate and drain plug gaskets.

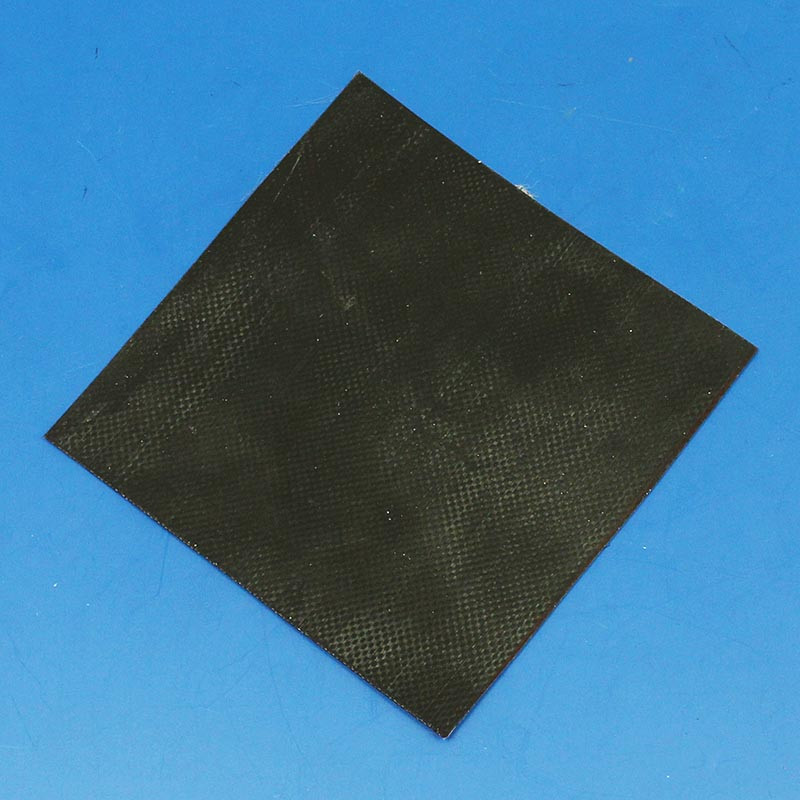

Fuel pump membrane for repair of fuel pumps, that do not feature one of our standard diaphragm assemblies with aspindle fitted. Suitable for E10 petrol. Sold in 10cm squares (100mm x 100mm) though as this product is cut to order off a roll, we can supply orders placed for multiple (nominal 100mm x 100mm) pieces as a single piece. E.g. if you order a quantity of four, you will receive a piece measuring 200mm by 200mm.

Filter gauze for T and TF type pumps. Newly made filter mesh with stainless steel screen bonded into plastic surround.

Cross-type AC Fuel pump to engine pad gasket for FE, FG, FH, TF and UF type pumps. 0.5mm thick Flexoid material. Note there is a cross-type and a plain slot type (SKU: FPRG4) used on these pumps. Remove the pump to see which gasket you need.

Engine pad gasket for T, TG, U, UE, UG and UH pumps.

Pressed metal spring retainer 27.5mm OD, 13.5mm ID, 4mm thick. Fuel side spring (part number FPRS10) retainer in WE pumps.

Rocker arm return spring - for WE, WG and W Vacuum pumps. 9mm OD, 31mm long, 1.25mm wire diameter.

Fuel side diaphragm spring - usually purchased with fuel pump repair kit BD54 (Ford PN E195-Z-1) for WE, WG and W Vacuum pumps. 23.5mm OD, 51mm long, 1.5mm wire diameter. Spring Retainer is FPRRET3B.

Spring steel plate 26mm x 24mm. Two 4mm diameter holes at 16.5mm centres. Type U, UF, UG pumps

Priming lever wire spring. 40mm uncompressed overall length, 15.2mm center of loop diameter.

5/16" brass blanking plug and fibre washer. 8mm thread length. 11.2mm AF. Supplied with fibre washer

O ring 13mm OD, 9.2mm ID, 1.9mm cross section diameter

Valve plate for Y type pumps 25mm x 29.5mm, 6.5mm diameter central hole, three 4mm diameter mounting holes. For gasket, see part number FPRG12.

Pan cross head. M5. Thread length 12mm. Supplied with split washer.

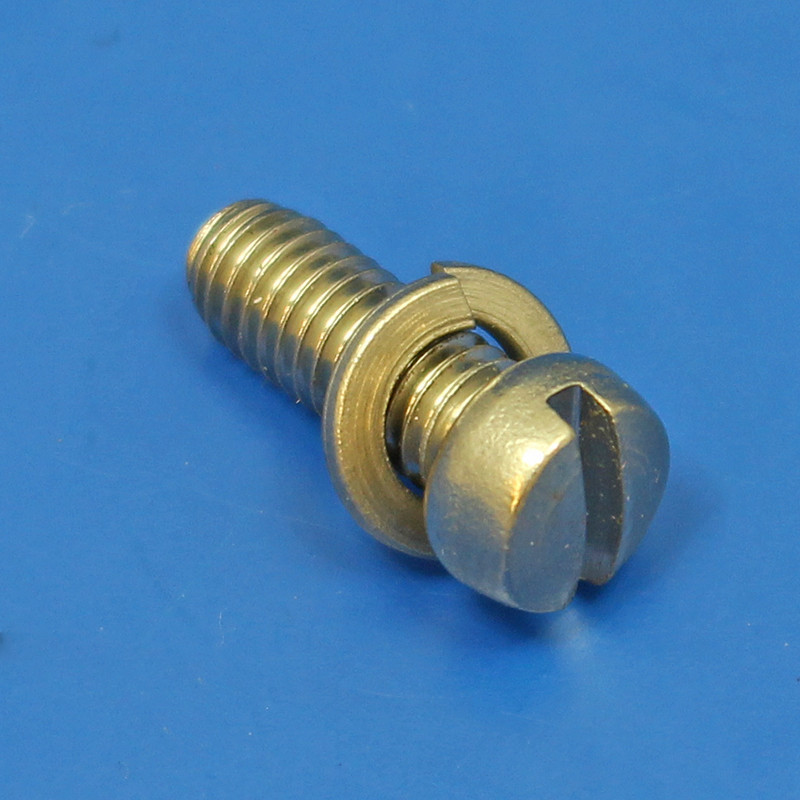

Fillister slotted head. No 10 x 32 UNF. Thread length 12mm. Supplied with split washer

Flat (countersunk) slotted head. No 6 x 32 UNC. Total length 6.25mm. Valve retaining plate screw.

Round slotted head. No 6 x 32 UNC. Thread length 9mm. Valve retaining plate screw.

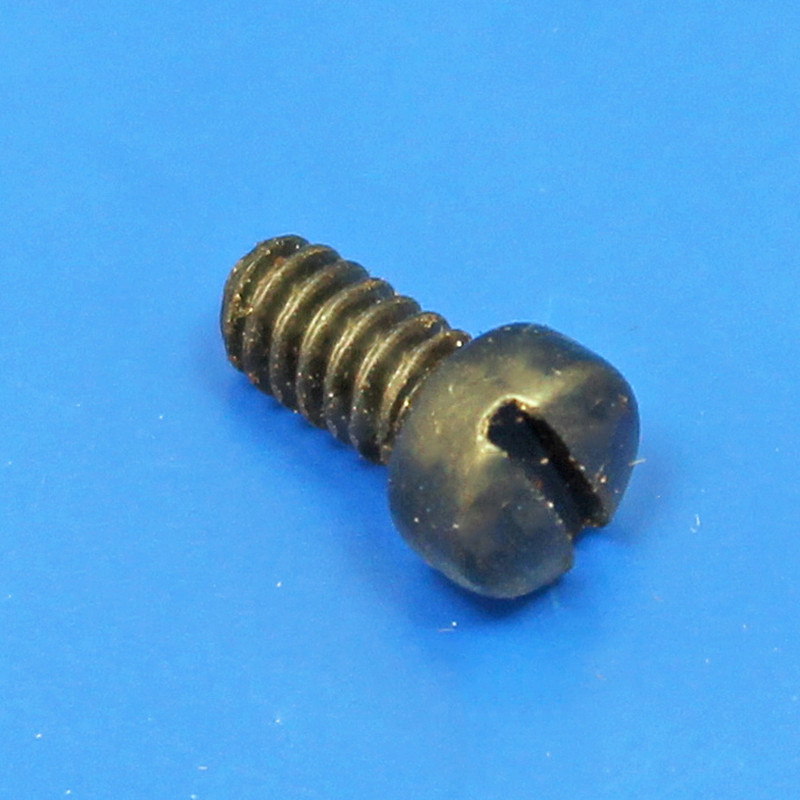

Fillister slotted head. No 6 x 32 UNC. Thread length 1/4". Valve retaining plate screw.

Diaphragm spring - part of fuel pump repair kit BD8 (ES2914) for WE, WG and W Vacuum pumps. 19.5mm OD, 60mm, 2.4mm wire diameter. Vacuum side spring.

Return spring - 8.5mm OD, 20.5mm long

Return spring - 6.5mm OD, 18.5mm long

Valve spring and retainer. 10.2mm OD, 22mm long on thin pressed brass retainer plate. For Y pumps

Washer 1.8mm thick, 6.4mm ID, 11.2mm OD

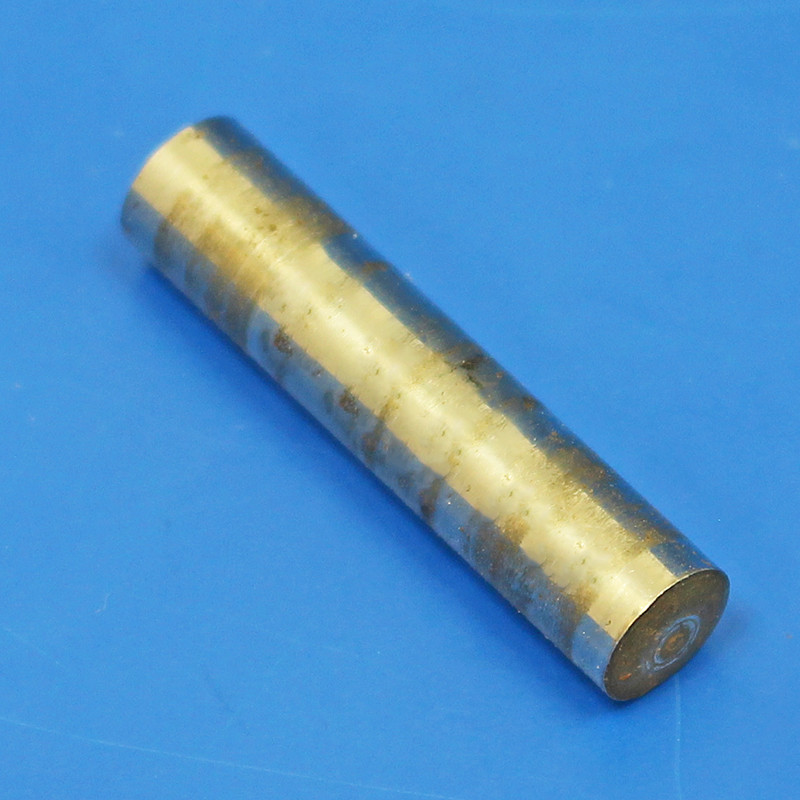

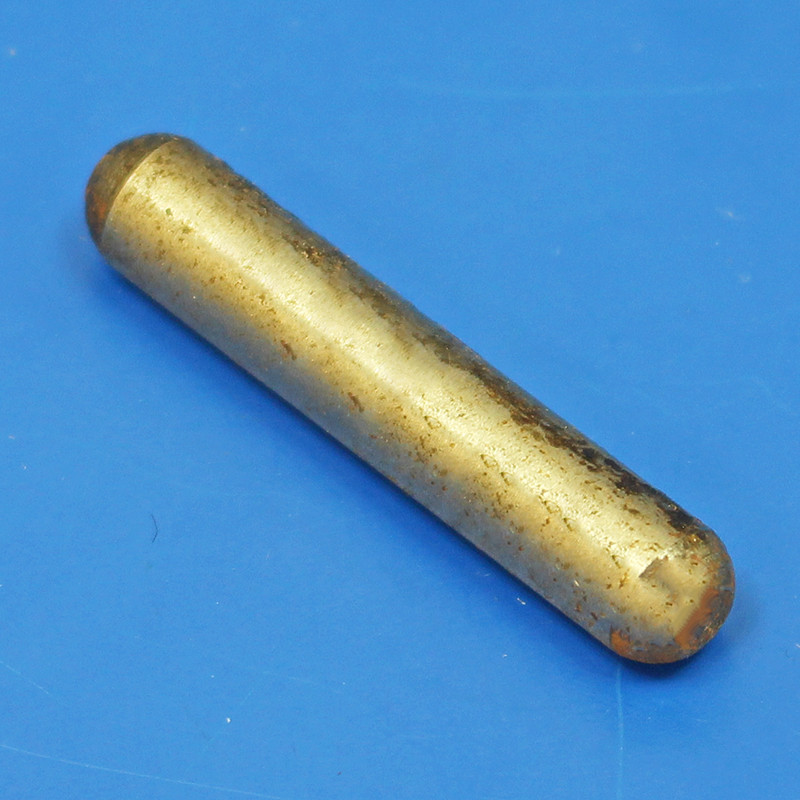

Rocker arm cross shaft. 28mm total length, 6.25mm diameter.

Rocker arm cross shaft. 33mm total length, 6.25mm diameter.

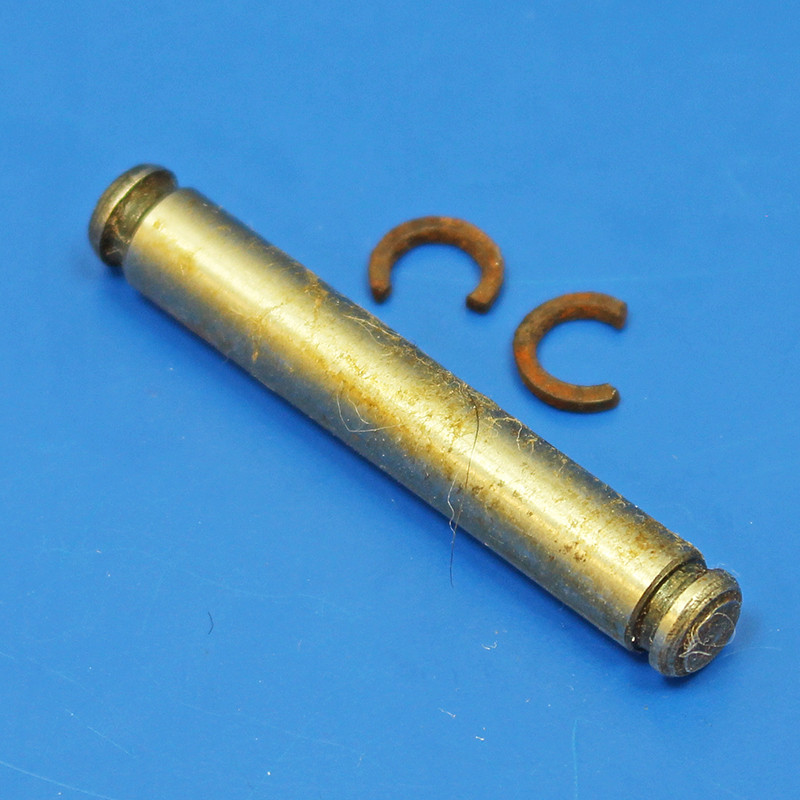

Rocker arm cross shaft plus two snap rings. 35mm between retainer rings, 42mm total length, 6.25mm diameter. Type T, TG pumps. New manufacture, precision machined, hardened and ground.

Pressed metal seal retainer 33mm OD, 26.5mm ID, 3mm thick. Two attachment lugs for 3.8mm diameter fixings. Vacuum side seal retainer for WG pumps - use with FPRSEAL3

Pressed metal spring retainer 21mm OD, 8mm ID, 6mm thick. Vacuum side spring retainer for WG pumps

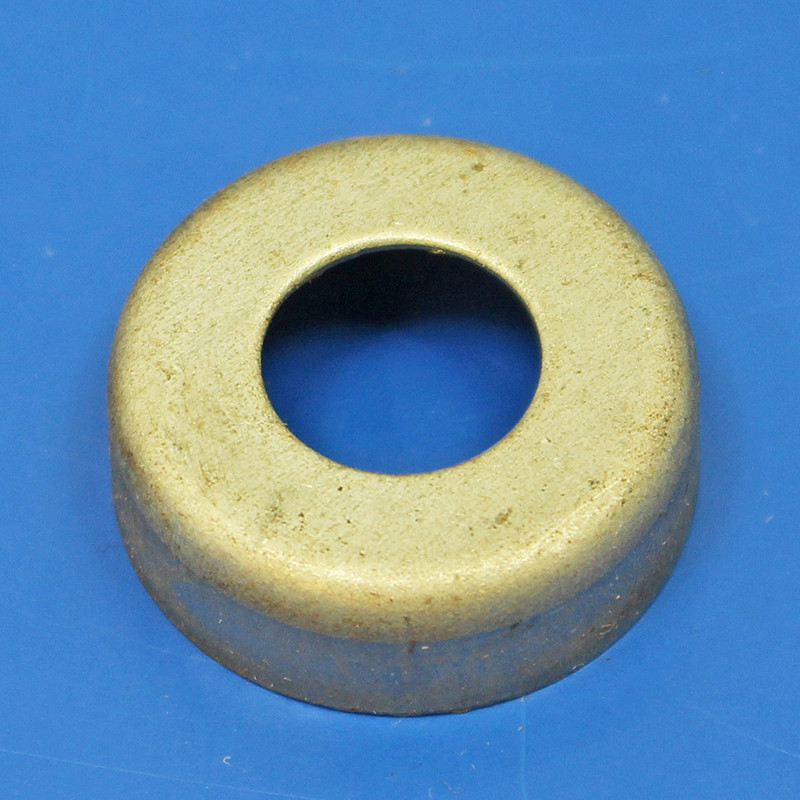

Pressed metal spring retainer 23.5mm OD, 14mm ID, 7mm thick. Fuel side spring retainer WE pumps

Pressed metal seal retainer 25.5mm OD, 10.25mm ID, 4.25mm thick. Fuel side seal retainer for WE pumps. For FPRSEAL2

Spindle seal rubber -35mm OD, 5.25mm ID, 11.5mm deep

Spindle seal rubber - 30mm OD, diameter, 5.25mm ID, 16mm deep. Vacuum side seal for WG pumps

Spindle seal rubber - 23.5mm OD, diameter, 5mm ID, 7mm deep. Fuel side seal for WE pumps. Use with FPRRET2

Spindle seal rubber - 20mm max OD, 15mm min OD, diameter, 5mm ID, 9.5mm deep

AC Fuel pump rebuild / repair Kit for YD and YJ type fuel pumps. Bedford TC, TD, TJ, TK, VA, Ford Industrial, Perkins and many more commercial application. Full kit unavailable, please see part number FPRD2 and selected other gaskets listed by size under the Fuel Pump Repair Component section of the site.

AC Fuel pump rebuild / repair Kit for UF (special) type fuel pumps. Applications include Auston, BMC, Morris commercialCommer, Massey Ferguson, Perkins and Landrover Series II Petrol and Diesel 1960 to '64. Kit contains diaphragm assembly, two valve assemblies, four engine pad gaskets, two bowl gaskets, valve plate, plug and drain plug gaskets.

AC Fuel pump rebuild / repair kit for VP type fuel pumps. Many commercial applications including Ford, Fordson, Perkins, Simms Motor Units. Kit contains diaphragm assembly, circular diaphragm, two valve assemblies, engine pad gaskets, thin steel washer, valve plug and drain plug gaskets.

Diaphragm gasket for A, B, G, L, N, P, W, WE, WG and WH type pumps. 6 hole pattern to match outer hole pattern of diaphragm leaves. Suitable for 10% Ethanol petrol.

Diaphragm gasket for VP type pumps. Used in repair kit BD14

Diaphragm FUEL SIDE for W, WE, WG and WH type pumps. Used on repair kit D54 Outer diameter – 84mm Distance between holes - 37mm Overall length of centre pin - 49.5mm From bottom of pin to centre of hole in pin – 43mm Outer diameter of plate on pin side – 40mm Outer diameter of plate on base side – 49mm

Diaphragm for Y, YD, YE and YJ type pumps. Used in repair kits BD3, BD4, BD11, BD17

Diaphragm VACUUM SIDE for W, WE, WG and WH type pumps. Used in fuel pump repair kit BD8 (AC 1524980, Remax ES2914)

Rubber gasket for FE, UE and WE pumps - 2.14" OD, 1.85" ID and 2.5mm thick Nitrile 70 Shore to BS2751 suitable for 10% Ethanol petrol.

Self tapping screw - Pan head No6 x 5/8" B type

Priming lever wire spring. 2.25" uncompressed height, 1.7" center of loops to end of wire 'V'

Rubber gasket for FE, UE and WE pumps - 2.14" OD, 1.62" ID and 2.5mm thick Nitrile 70 Shore to BS2751 suitable for 10% Ethanol petrol.

Rubberised circular diaphragm gasket 64.5mm OD x 7mm ID x 0.75mm thick. Nitrile Nylon suitable for 10% Ethanol petrol.

THREE diaphragm leaves for A, B, G, L, N and P type pumps. NBR Nylon suitable for 10% Ethanol petrol.

Rubber gasket for U and UF pumps - 2.31" OD. 1.94" ID and 2.5mm thick Nitrile 70 Shore to BS2751 suitable for 10% Ethanol petrol.

Rubber gasket for T, TF and TG pumps - 2" OD. 1.69" ID and 2.5mm thick Nitrile 70 Shore to BS2751 suitable for 10% Ethanol petrol.

Cork gasket for T, TF and TG pumps - 2" OD. 1.69" ID and 1/8" thick. Suitable for 10% Ethanol petrol.

Cork gasket for Y and YD pumps - 1.75" OD, 1.47" ID and 1/8" thick

Cork gasket for FE, UE and WE pumps - 2.14" OD, 1.62" ID and 1/8" thick. Suitable for 10% Ethanol petrol.

Cork gasket for U and UF pumps - 2.31" OD. 1.94" ID and 1/8" thick. Suitable for 10% Ethanol petrol.

Diaphragm for FE, FG, FH, T, TG, U, UE, UF, UG and UH type pumps. Used in repair kits BD1, BD2, BD6, BD15.

Valve plug gasket for A, B, G, L, N and P type pumps. 12.7mm OD x 6.6mm ID x 1.6mm thick red fibre washer

Rubberised fabric oil control gasket for T, TG, U, UE, UG and UH pumps. 1mm thick.

Valve plate gasket for T, TF and TG type pumps.

Slot type AC Fuel pump to engine pad gasket for FE, FG, FH, TF and UF type pumps. 0.5mm thick Flexoid material. Note there is a slot & a cross-type (SKU: FPRG4B) used on these pumps. Remove fuel pump to see which gasket you need.

Engine pad gasket for B, T, U type push rod operated pumps.

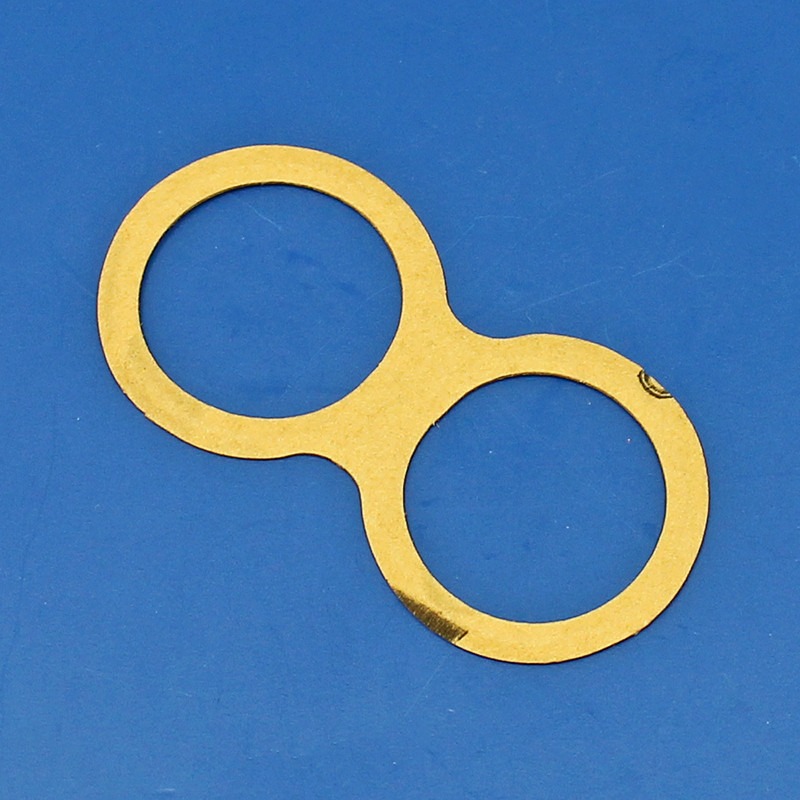

Spectacle pattern valve plate gasket for FG, U, UE, UF, UG, WE, WH and YD type pumps

Engine pad gasket for Y, YD and YJ type pumps. Flexoid material 0.5mm thick.

Hexagonal valve for A, B, M, Y type pumps made from woven cotton and phenolic resin laminated plastic material. 1.6mm thick and 3/8" AF. (0.375" / 9.5mm across flats)

Valve assembly for FG, U, UE, UF, UG, WE, WH and YD fuel pumps. (0.750" / 19mm outer diameter), (0.370" / 9.4mm Height)

Hexagonal valve for T, TF and TG type pumps made from phenolic resin impregnated woven cotton laminated sheet. 1.6mm thick and 15/32" AF. (0.485" / 12.3mm) Across Flats

Small metal retainer with semi circular cut out 9.5mm wide, 10.9mm high, part circular cut out 6mm wide and 4mm deep

Diaphragm spring 30mm long, 19mm OD, 1.3mm wire diameter, 5 turns

Diaphragm spring 50mm long approx, 33m OD, 1.8mm wire diameter, 5 turns

Diaphragm spring 58mm long approx (56 to 60mm range), 33m OD, 1.8mm wire diameter, 5 turns

Valve spring for T and Y type pumps. Made from phosphor bronze spring wire for fuel service.

Steel shim/sealing washer 30mm OD x 35mm ID x 0.6mm thick

Rubber gasket for FG, TG, UG, WG pumps - 2.31" OD. 1.81" ID and 2.5mm thick Nitrile 70 Shore to BS2751 suitable for 10% Ethanol petrol.

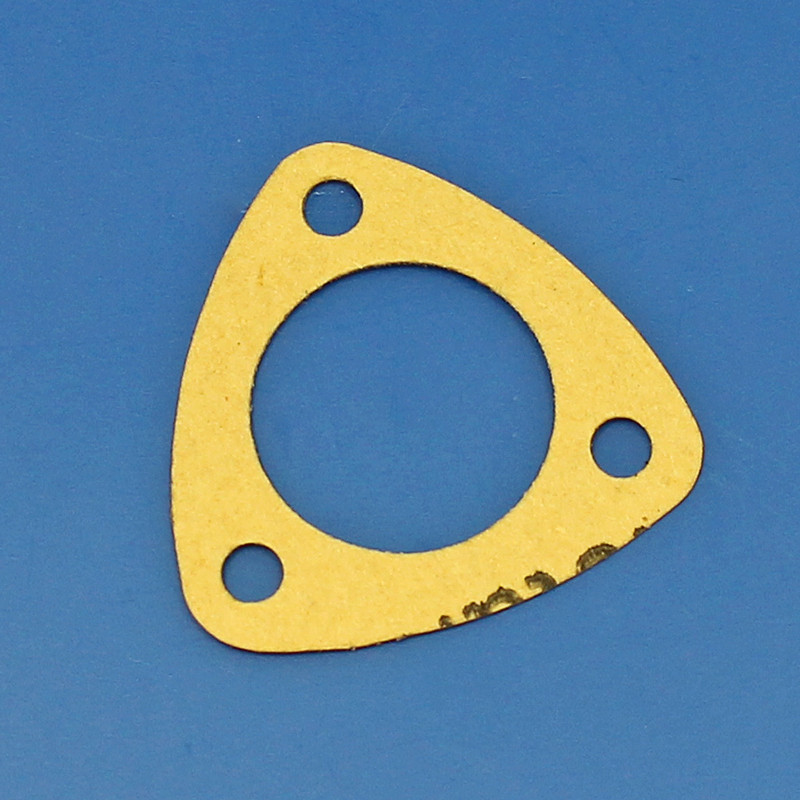

Valve plate gasket for Y type pumps.

Engine pad gasket for B, M, T, TG, U, UE, UG, UH type pumps. 0.8mm thick Flexoid material

Cork gasket for FG, TG, UG, WG pumps - 2.31" OD. 1.81" ID and 1/8" thick. Suitable for 10% Ethanol petrol.

Rubber gasket for Y and YD pumps - 1.75" OD, 1.47" ID and 2.5mm thick

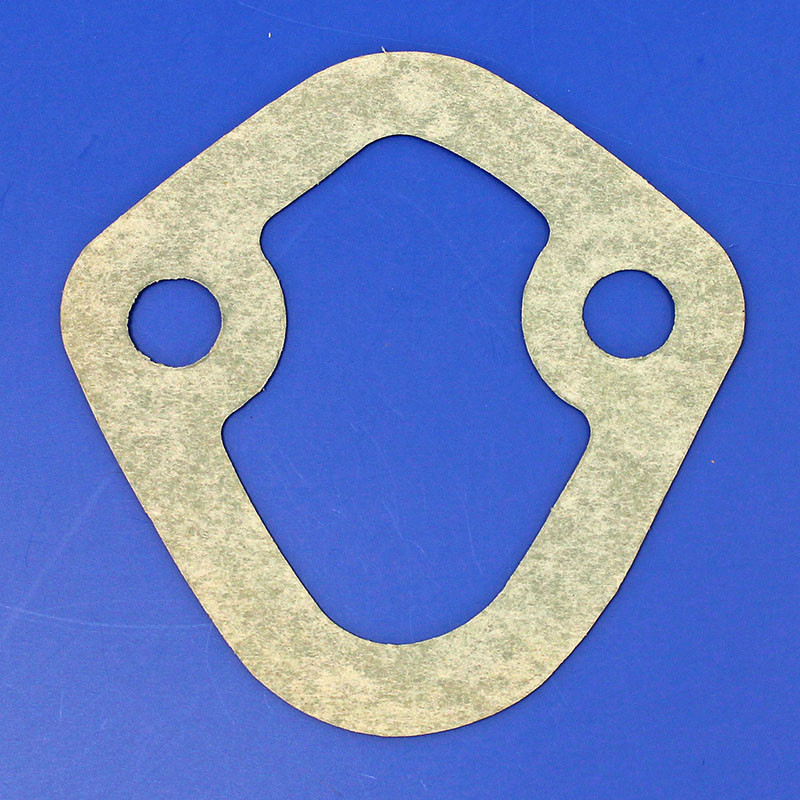

Engine pad gasket for W, WE, WG and WH type pumps.

Valve plug gasket - flexoid18.85mm OD x 15.35mm ID x 0.5mm thick

Drain plug gasket for Y, YD and YJ type pumps. Fibre washer 10.4mm OD x 4.9mm ID x 1.8mm thick

Drain plug gasket for FE, FG, FH, T, TF, TG, U, UE, UF, UG, UH type pumps. Fibre washer 11mm OD x 6..25mm ID x 2mm thick.

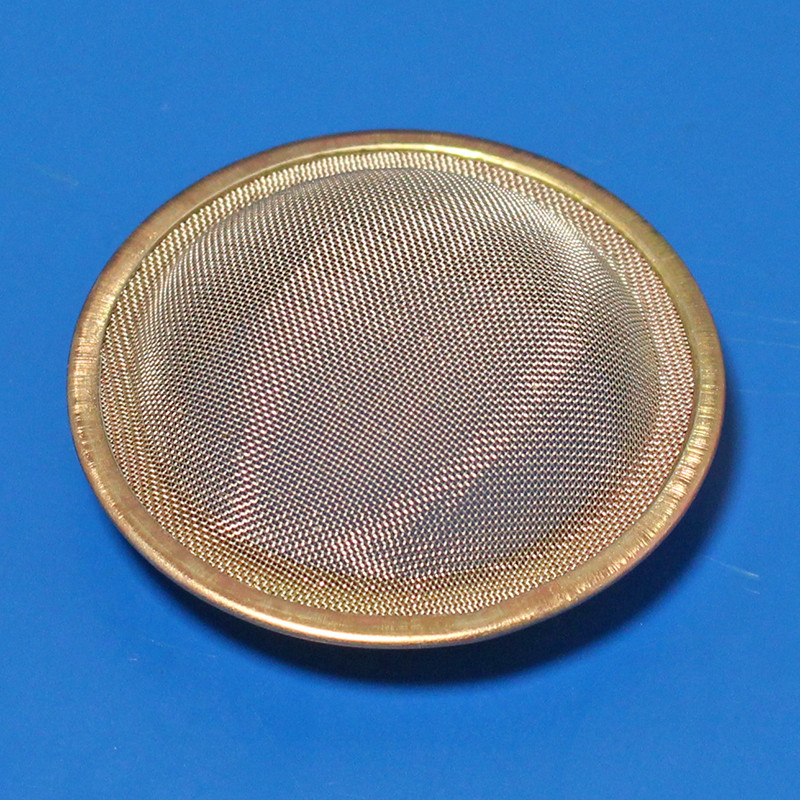

Brass filter gauze for U and UF type pumps

Brass filter gauze 1.8" OD with an offset 0.25" square apperture Inside edge of square is 0.25" from centre line. Applications include early AC sediment bowl filter on Landrover Series 1 - part number 261418 - with 1/4" square fuel feed

Brass filter gauze for FG, TG, UG and WG type pumps

Brass filter gauze 1.8" OD x 0.5" ID central aperture

Brass filter gauze for Y and YD type pumps

Brass filter gauze for FE, UE and WE type pumps
