Wiper Motors - Wiper motor - Windscreen mounted, stainless cover, 12V, auto-park

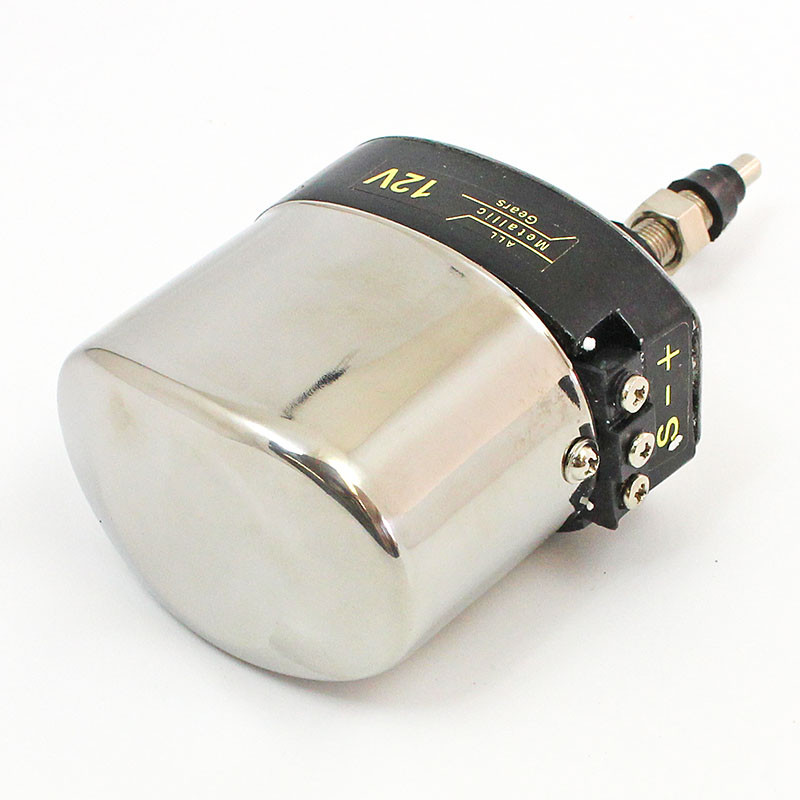

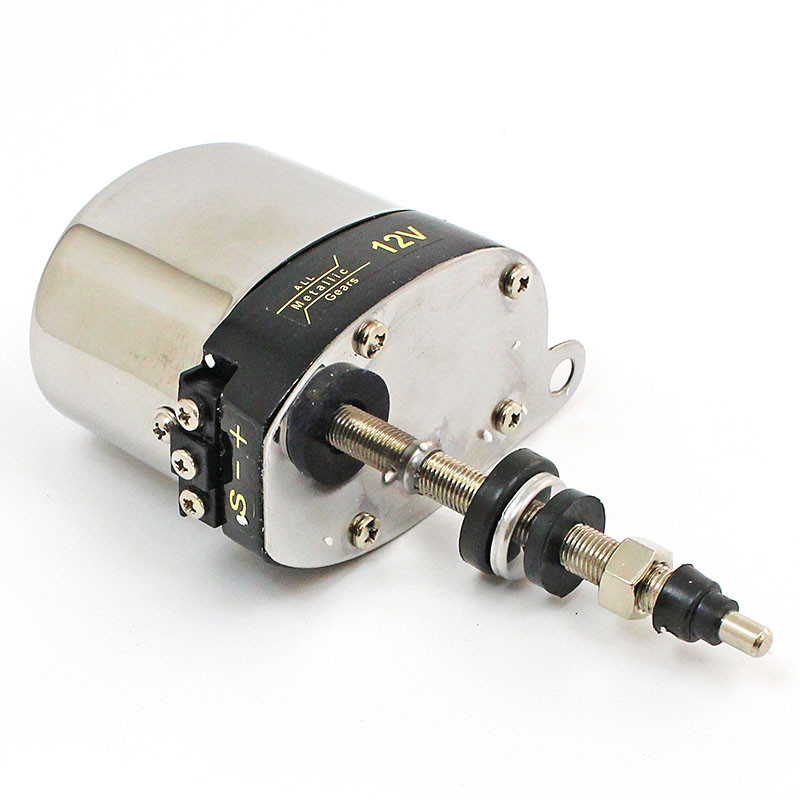

Wiper motor - Windscreen mounted, stainless cover, 12V, auto-park

Practical modern wiper motor for continual use. 12 volt. Polished stainless steel cover, will 'auto-park' to one side. Central drive offtake (6mm), requires 8.7mm shaft hole through screen, with one stabilising mounting, body approx 56mm x 80mm wide x 77mm deep. Oscillating 90 degree sweep. Outer shaft approx 61mm long, inner shaft approx 78mm, which may be cut shorter if required. This unit requires a separate switch. Please note - the metric size shaft will require turning to fit or shimming for the imperial size (3/16" and 1/4") wiper arms we offer.

@ £69.28/  each  (exc. VAT)  (inc. VAT @ 20%)
Subtotal:
Total: £

Fitting instructions

CA292-3 Wiring Diagram
