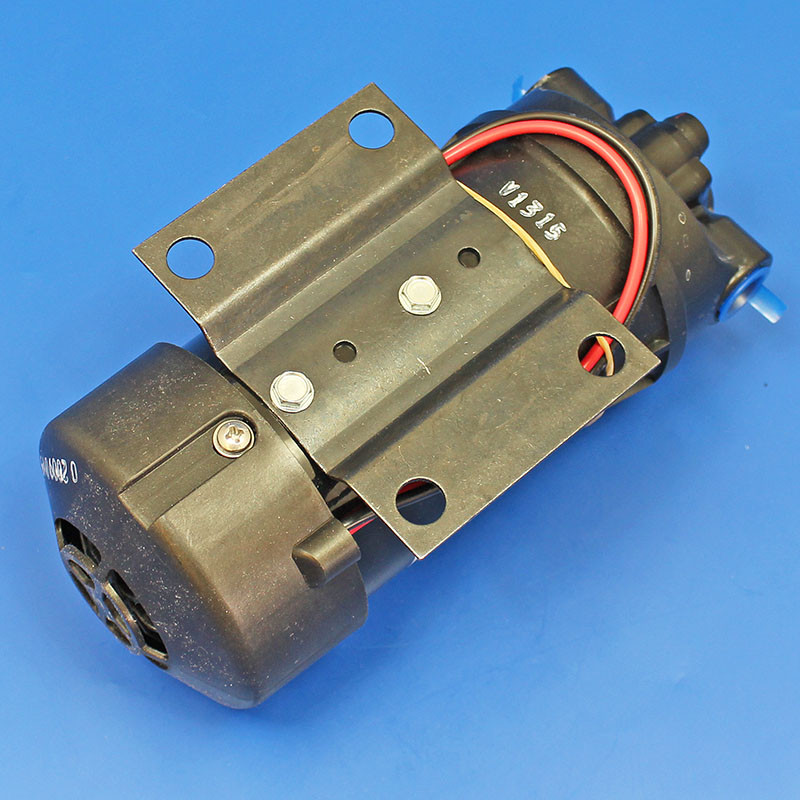

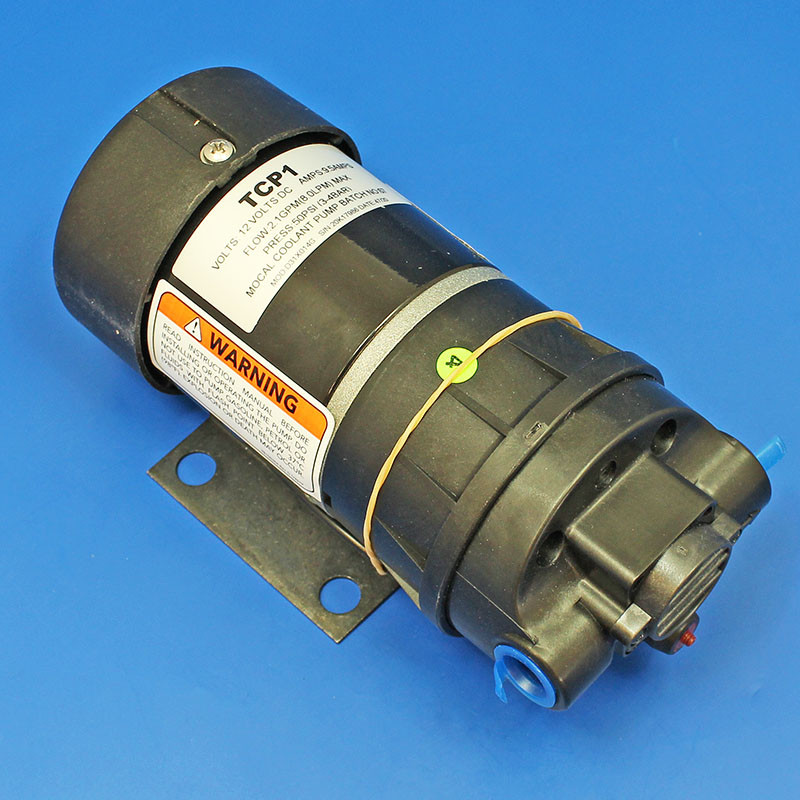

A diaphragm pump with integral cooling fan and 12 volt motor. Weight 1.5kg. Ports are 3/8" NPTF and may be rotated in 90° increments to simplify plumbing. The pump body is made of lightweight nylon.
Care must be taken when tightening tapered adapters so not to over
tighten and crack housing.
Performance - Flow 1.6 gals/7.5 litres per min. Pressure 50psi/3.5
bar. Temperature, for constant use up to 130°C, intermittent up to
150°C. Max current draw 5 amps. Dimensions 200mm x 102mm diameter with a 61 x 57mm hole centred foot plate
