- Diaphragm Assembly

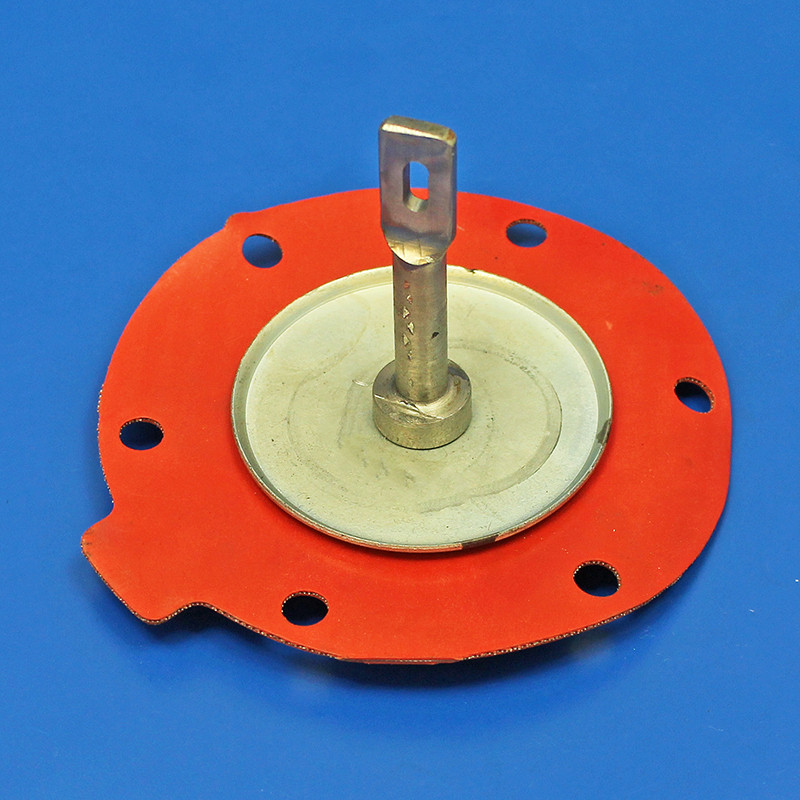

Diaphragm Assembly

Diaphragm FUEL SIDE for W, WE, WG and WH type pumps. Used on repair kit D54

Outer diameter – 84mm

Distance between holes - 37mm

Overall length of centre pin - 49.5mm

From bottom of pin to centre of hole in pin – 43mm

Outer diameter of plate on pin side – 40mm

Outer diameter of plate on base side – 49mm

@ £21.21/  Each  (exc. VAT)  (inc. VAT @ 20%)
