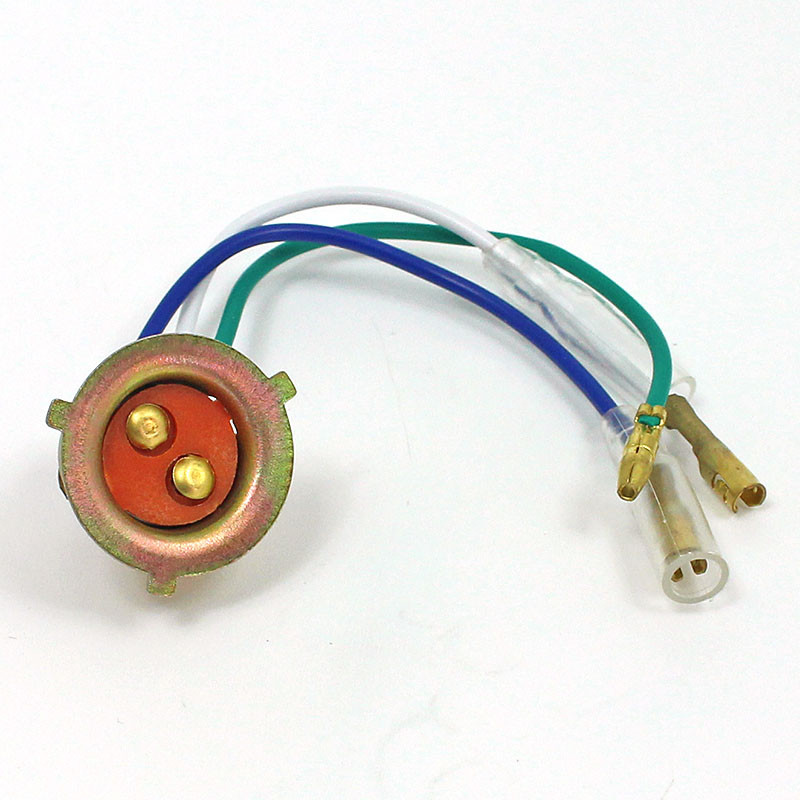

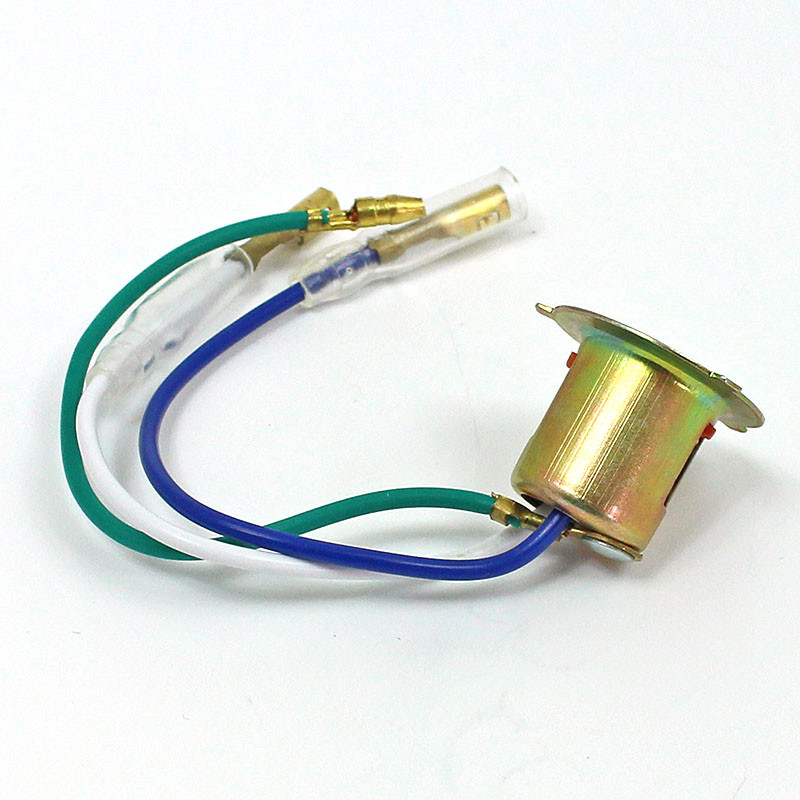

Double contact bulb holder for PX15D 25.1 MPF (Mini Pre Focus) base bulbs. 52mm diameter, removable plastic surround with three equally spaced square cut locating tabs, on a 16.5mm outer diameter metal holder with 15.5mm inner diameter. Two live connection leads and one earth - Green, earth (bullet connection); White, low beam; Blue, high beam (socket connections). Maximum depth 20.5mm.
The bulbs are available in 6 or 12V and power outputs from 25/25W for (Honda and Yamaha) motorcycle and scooter headlamp applications. Bulbs feature a 25mm diameter focus plate with one rounded locating tabs. The three tabs on the bulb holder locate in the three slots in the back of the lamp - please chech that the back of your lamp will accept the holder. See bulbs B1065, B3596, B3598B, B3603, B3606, B3625, BA3598HA, BA3599 and BA3625A as well as LED options - part numbers PX15D25.1-H30-6N and P15D25.3-H30-6P (6V, warm white, negative and positive earth, without a lens) and P15D25.3-H30 (12V and 24V warm white without lens)
