One-wheel box wiper assembly. The kit comes with a 14W motor, 32 or 40 tooth wheel box (32 is the most popular), drive gear 90 to 130 degree, nut, ferrule, pad & strap, bundy tubes cut to length and flared, and a 150cm drive rack.

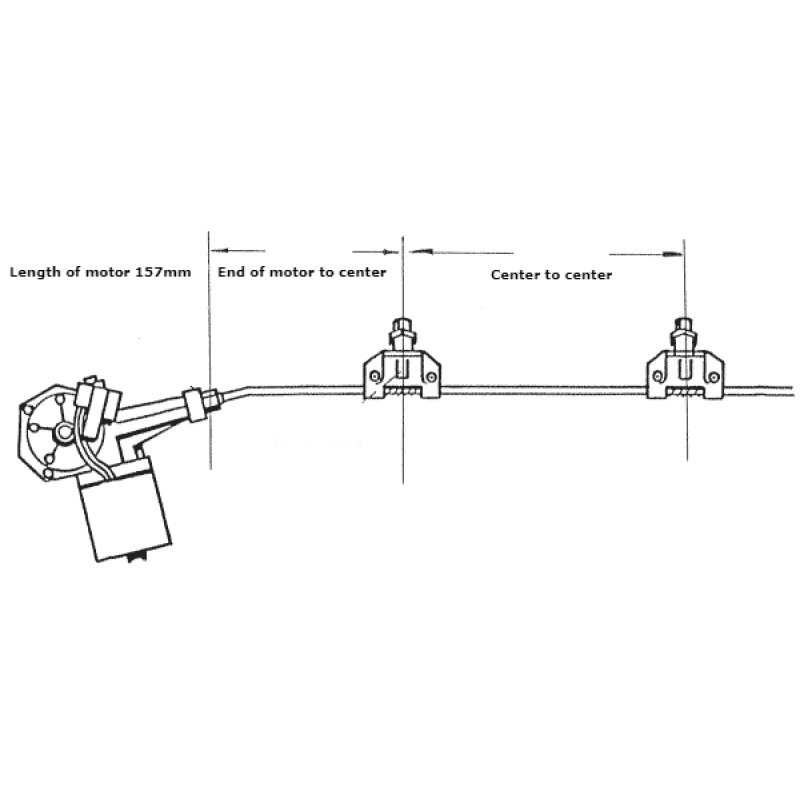

Please see the "Guides Section" or click on the link below for help to identify the wheel box required, degree of drive gear and how to measure the bundy tubing. Bundy tubing can be measured from flared end to flared end (if measured off existing tubing) or to and from wheel box centres - please select the method of measurement. The kit does not include wiper arms or blades.
If you are unsure or have any questions about any part of the kit, please call or email us.
Please give the length of the two bundy tubes (motor ferule to wheelbox, wheelbox to end) in the additional information boxes below, for example 335mm / 150mm or 6 1/4" / 4 1/2"
View our guide to wiper systems
